Quick Details
Place of Origin: Jiangsu, China (Mainland)
Brand Name: XJY
Material: anti-corrosive
Specification: D500-3500mm
Packaging & Delivery
Packaging Details: | Krate/container |
Delivery Detail: | within 30 working days |
Specifications
Sludge dewatering treatment for all kinds of industrial waste water.
Summarize

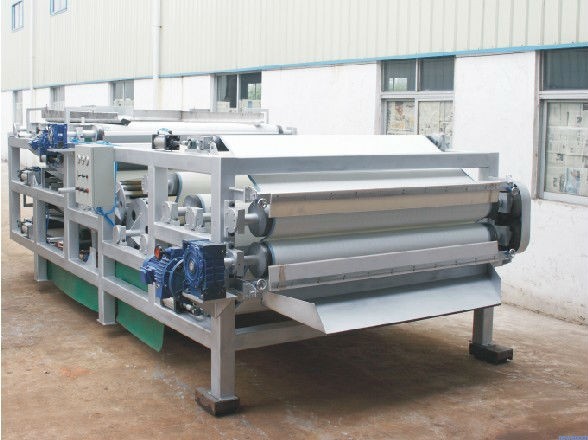

Belt filter press is high efficiency separation equipment based on chemical coagulation filtration and mechanical press theory. It is wildly adopted due to its simple process, high automation, continuously running, easy operation and adjustable operation procedure. It also can save floor space of sludge concentration tank and reduce the cost.
Scope of application
1. Sludge dewatering treatment for all kinds of industrial waste water.
2. Paper making, leather industry, livestock products industry, aquatic product industry, chemical industry and food industry.
3. Sludge concentration treatment and dewatering treatment for municipal sewer, water clarification plant.
4. Sludge dewatering of blast furnace, converter, firing, metallurgy etc.
5. Separating usage of food industry, chemical industry, mineral industry etc.
Operation principal
Completely mixed with certain density of flocculating agent, small size solids will form bigger floccule and free water will be separated. Filtered sludge will flow into gravity dewatering zone and most part of free water will be filtered out. Sludge will come into a wedge-shaped area formed by two filter belts. The sludge will be pressed by the two belts. Density of sludge raises and flowability reduces. In press area, increasing pressure and shearing force separate more remained free water from sludge. Sludge will become waterless cake and will be scraped off. The upper and lower filter belt will be flushed and run the next filtering process.
Characteristic
Combines belt presser and belt filter ensures continuously sludge concentration, dewatering and get waterless sludge cake. Solid content will be enhanced from 2% to 5% in concentration process and will reach 20% after filter pressing process.
The equipment consists of stainless rack, gravity dewatering area, filter pressing area, sludge harrow, driving unit, filter belt cleaning device, belt tightness adjusting device, belt guiding system, filtrate collecting cannel and discharge cannel, inner wiring tube etc. Anti-corrosive material of all above parts ensures long lifespan of the equipment.
Perfect automatically running and security function. Lack of sludge, lack of polymer, off tracking of belts, low flush pressure, low air pressure will stop the equipment and alarm.
Especially big diameter arc dewatering technology increases the pressure of the belt slowly and continuously and stops sludge leakage circumstance.
Compact designing requires smaller floor space and S shape location of guide roller ensures steady good dewatering performance.
Simple structure, low fault rate, steady running, special filter mesh designing, good pre-dewatering performance.
